CapaCity & CapaCity L.

Technical data and equipment at a glance.

The Capacity and CapaCity L at a glance.

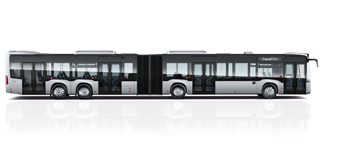

CapaCity

Length [mm]:
19.725
Turning circle [mm]:
22.926
Height [mm]:
3.095
Width [mm]:
2.550

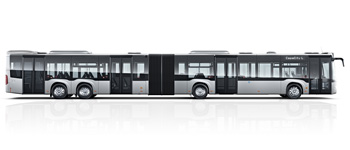

CapaCity L

Length [mm]:
20.995
Turning circle [mm]:
24.466
Height [mm]:
3.095
Width [mm]:
2.550

Technical data and equipment at a glance.

CapaCity CapaCity L
Transport capacity
Number of seats – Standard seating 44 44
Passenger capacity max. 181 199
Seating type City Star Eco (CSE) ● ●
Seating type City Star Function (CSF) ○ ○
Seating type Inter Star Eco (ISE) ○ ○
Driver’s seat GRAMMER Linea MSG 90.6 P, air-sprung ● ●
Driver’s seat ISRI 6860, integrated pneumatic system, 3-point seat belt ○ ○
Wheelchair space ○ ○
CapaCity CapaCity L
Dimensions
Length [mm] 19.725 20.995
Width [mm] 2.550 2.550
Width incl. mirrors [mm] 2.950 2.950
Height [mm] 3.095 3.095
Height incl. air-conditioning system [mm] 3.120 3.120
Height incl. optional equipment 3.350 3.350
Heigth incl. rear roof fans [mm] 3.095 3.095
Inner stand height [mm] 2.313 2.313
Parapet height (above ground) [mm] 952 952
Wheelbase front axle-central axle [mm] 5.900 5.900
Wheelbase central axle-drive axle [mm] 5.990 7.260
Wheelbase drive axle - trailing axle [mm] 1.600 1.600
Tyre size 275/70 R 22,5 275/70 R 22,5
Overhang at front [mm] 2.805 2.805
Overhang at rear [mm] 3.430 3.430
Turning circle [mm] 22.926 24.466
Turning circle BOKraft [mm] 25.000 25.000
Ring width turning circles min. [mm] 7.479 7.095
Ring width BOKraft [mm] 6.769 6.928
Ring width max. permissible according to BOKraft [mm] 7.200 7.200
Track circle minimal [mm] 19.109 20.901
Wheel impact front axle max. [°] 53 53
Cockpit height [mm] 310 310
Usable volume / capacity AdBlue [l] 27/32 27/32
Capacity fuel tank left / right [l] 150 / 150 150/150
Floor height over roadway [mm] 370 370
Pedestal height [mm] 310 310
Entry height door 1 [mm] 320 320
Entry height door 2 [mm] 320 320
Entry height door 3 [mm] 320 320
Entry height door 4 [mm] 320 320
Clear door width 1 [mm] 1.250 1.250
Clear door width 2 [mm] 1.250 1.250
Clear door width 3 [mm] 1.250 1.250
Clear door width 4 [mm] 1.250 1.250
Slope angle in front [°] 7 7
Slope angle rear [°] 7 7
CapaCity CapaCity L
Transmission
Engine Mercedes-Benz OM 470 Mercedes-Benz OM 470
Engine 2* Mercedes-Benz OM 470 Mercedes-Benz OM 470
Engine type 6-cylinder in-line-engine 6-cylinder in-line-engine
Output [kW] 265 265
Output 2* [kW] 290 290
Max. torque [Nm] 1.700 1.700
Max. torque 2* [Nm] 1.900 1.900
At speed [1/min] 1.100 1.100
At speed 2* [1/min] 1.100 1.100
Displacement [l] 10,7 10,7
Displacement 2* [l] 10,7 10,7
EU emissions standard Euro VI Euro VI
Transmission Voith Diwa.6 Voith Diwa.6
Transmission 2* ZF-Ecolife ZF Ecolife
CapaCity CapaCity L
Chassis
Steering Power steering Power steering
Front axle, type ZF RL 82 EC ZF RL 82 EC
Centre axle, type ZF AVN 133 ZF AVN 133
Driven axle, type ZF AV 133 ZF AV 133
Trailing axle, type ZF RL 82 EC ZF RL 82 EC
Front axle: independent suspension, anti-roll bar ● ●
Drive axle: with anti-roll bar ● ●
Trailing axle: active steering, independent suspension ● ●
Kneeling ○ ○
Articulation Turntable Controller (ATC) ● ●
Air suspension via electronic level control system (ENR) ● ●
Rough road running gear ○ ○
CapaCity CapaCity L
Brakes
Pneumatic disc brakes on all axles ● ●
Electronically controlled braking system (EBS) ● ●
Anti-blocking system (ABS) ● ●
Brake Assist (BAS) ● ●
Acceleration Slip Regulation (ASR) ○ ○
Retarder ○ ○
Automatic bus stop brake with pull-away lock ● ●
Parking brake ● ●
CapaCity CapaCity L
Safety and driver assistance systems
Rollover strength compliant with ​in ECE R29 ● ●
Tire Pressure Monitoring (TPM) ● ●
Preventive Brake Assist 2 ○ ○
Front Collision Guard (FCG) - -
Sideguard Assist 2 ● ●
Reversing camera ● ●
Reversing buzzer ○ ○
Extinguishing system ● ●
Rain-light sensor ○ ○
Flat wiper blades with water fed through wiper blade ● ●
Rollover strength compliant with ECE-R 66.02 ● ●
270° Kamera ○ ○
Traffic Sign Assist ● ●
Frontguard Assist ● ●
Attention Assist (AtAs) ● ●
MirrorCam ○ ○
CapaCity CapaCity L
Weight and fuel tanks
Capacity of fuel tank [l] 300 300
AdBlue® additive tank [l] 32 32
Gross vehicle weight [kg] 32.000 32.000
Axle loads, max. permissible front axle [kg] 7.500 7.500
Axle loads, max. permissible central axis [kg] 10.000 10.000
Axle loads, max. permissible drive axle [kg] 13.000 13.000
Permissible weight trailing axle [kg] 6.930 6.930
CapaCity CapaCity L
Heating, air conditioning and ventilation
Heater with convectors at side walls ○ ○
Driver’s area air conditioning ○ ○
EvoCool Basic ○ ○
Turbo roof ventilator ● ●
Roof-mounted air-conditioning system with heat pump ○ ○
Electric roof air conditioning (modular system) ○ ○
Electric roof air conditioning system (modular system) for the driver's workstation ○ ○
Refrigerant filling capacity [lbs/kg] 0 - 16 0 - 16
CO₂ equivalent [lbs/t] 0 - 22,88 0 - 22,88
CapaCity CapaCity L
Doors and glazing
Number of doors 4 4
Interior swivel door ● ●
Sliding swivel door ○ ○
Ramp manual ○ ○
Ramp electric ○ ○
Single glazed ● ●
Double glazed ○ ○
Windscreen heatable ○ ○
CapaCity CapaCity L
Profitability
Tire Pressure Monitoring (TPM) ● ●
CapaCity CapaCity L
Lighting
Low beam ● ●
High beam ● ●
Daytime driving lights with LED technology ○ ○
Daytime driving lights with halogen ● ●
Headlamps with LED technology ○ ○
Headlamps Bi-Xenon incl. cleaning system ○ ○
Front fog lamp ○ ○
Cornering light ○ ○

● Standard equipment ○ Optional equipment
* Optional equipment

Safety.

Sideguard Assist 2

Sideguard Assist 2 is a safety assistance system that supports the driver in critical situations when turning right or turning left when visibility is possibly restricted. The system is designed to help detect moving obstacles within the system limits, and warns the driver so as to avoid critical situations or reduce the consequences of accidents when turning off or changing lanes.

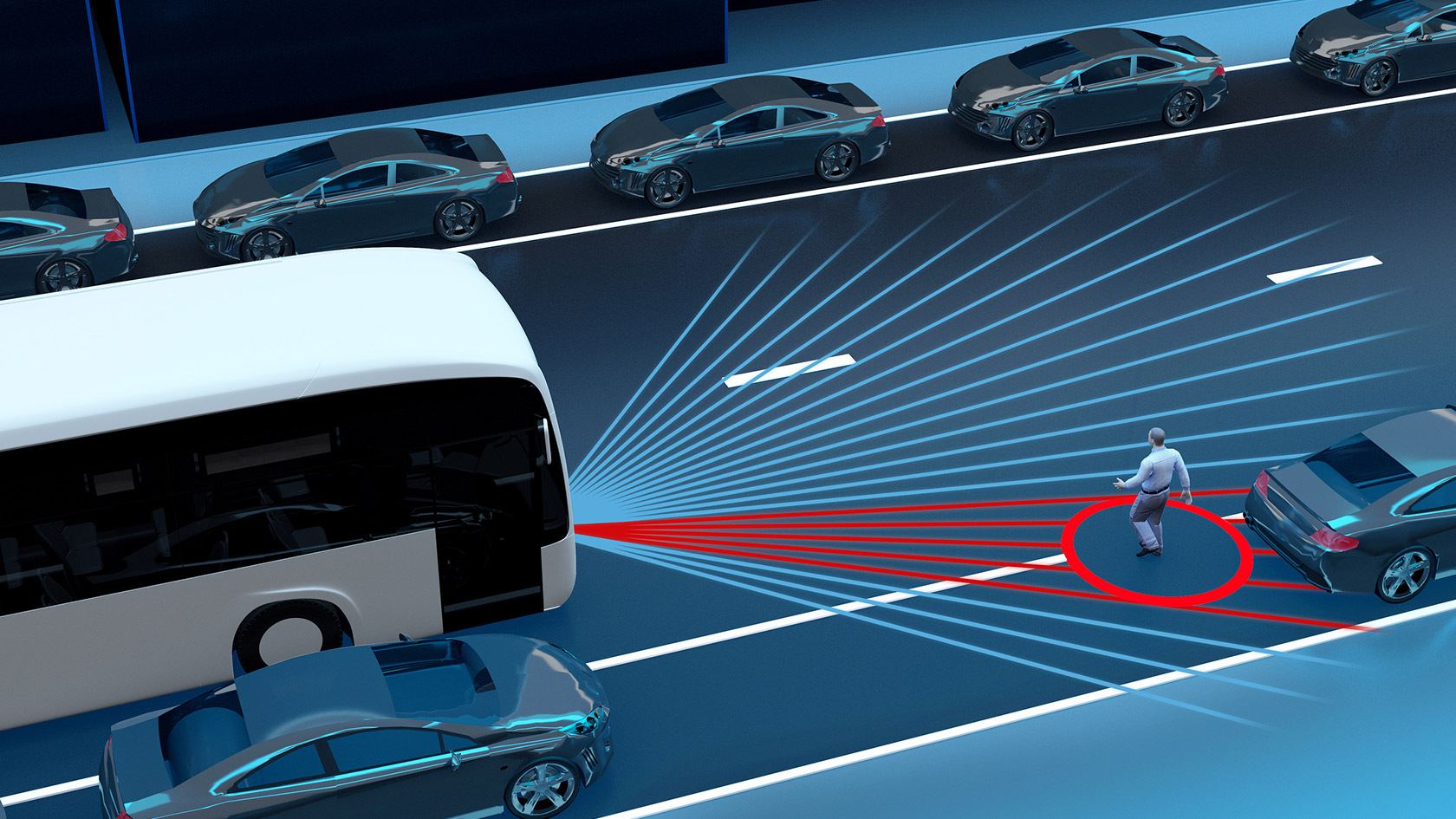

Preventive Brake Assist 2

With Preventive Brake Assist 2, Daimler Buses offers the second generation of Active Brake Assist. The system warns of collisions with moving pedestrians and cyclists as well as stationary and moving objects. In the event of a serious risk of collision, the driver is alerted by a visual and acoustic warning and partial braking is initiated automatically.

Tyre Pressure Monitoring (TPM)

The wireless tyre pressure monitoring with indication in the multifunctional display is an electronic safety system that permanently monitors the air pressure of all tyres. Tyre pressure losses are displayed within the system limits.

The right tyre pressure contributes to driving safety and significantly reduced fuel consumption. Even a tyre pressure set 0.5 bar too low can increase fuel consumption by up to 5%. The wheel electronics are positioned on the valve on the inside of the rim. The sensors record the data relevant to the tyre pressure and transmit it to the display instrument.

MirrorCam

The modern MirrorCam system provides a clear and full view of the road traffic. Equipped with high-resolution cameras, the driving safety is improved and the risk of accidents is minimised. The extended field of vision enables the driver to see pedestrians, cyclists and other road users in the surrounding area. This eliminates the blind spot when turning right.

Traffic Sign Assist (TSA)

The innovative Traffic Sign Assist offers maximum safety and comfort on the road. Thanks to GPS and camera support, the vehicle speed is constantly compared with the current traffic regulations.

Frontguard Assist

Frontguard Assist is an advanced system that was specially developed to warn drivers of pedestrians located immediately in front of the vehicle and also to warn them of an impending accident. Whether you are pulling away or driving slowly (up to 15 km/h), the intelligent assistance system can detect potential collisions with unprotected road users.

Attention Assist (AtAs)

Attention Assist (AtAs) is a safety assistance system that can help prevent microsleep. It thus contributes to improved driving safety, especially on long journeys and when driving at night. The system warns the driver visually and acoustically when it detects typical signs of overtiredness or inattention and prompts him/her to take a break. The warning is independent of the electronic logging device (ELD).
