The Mercedes-Benz Sprinter minibuses will be manufactured by Tremonia Mobility GmbH (previously Minibus GmbH) from 01.01.2022, but will continue to be sold through Daimler Buses. Further information.
The Sprinter
minibuses
Technical data
Technical data at a glance.
|
|
|
|
|---|---|---|
| Transport capacity | ||
| Passenger capacity max. | 28 | 38 |
| Seats (standard) | 13 | 12 |

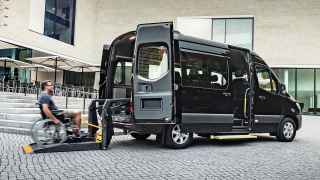

| Wheelchair capacity max. | 1 | 1 |
| Dimensions | ||
| Length [mm] | 7.367 | 8.486 |
| Width (front) [mm] | 2.020 | 2.020 |
| Width (rear) [mm] | 2.020 | 2.080 |
| Height (incl. rooftop ventilators) [mm] | 2.790 | 2.860 |
| Height (incl. air conditioning system) [mm] | 2.850 | 2.920 |
| Wheelbase [mm] | 4.325 | 5.100 |
| Track width front axle [mm] | 1.685 | 1.685 |
| Track width rear axle (driving axle) [mm] | 1.517 | 1.536 |
| Tyres [mm] | 195/75 R 16 C | FA: 205/75 R16 C HA: 215/75 R 17,5 |
| Standing height in low-floor area [mm] | 2.190 | 2.325 |
| Standing height in middle aisle [mm] | 1.910 | 1.910 |
| Turning circle min. [mm] | 15.300 | 17.700 |
| Front overhang [mm] | 1.021 | 1.021 |
| Rear overhang [mm] | 2.015 | 2.370 |
| Engine & output | ||
| Engine | Mercedes-Benz OM 651 Euro VI | Mercedes-Benz OM 651 Euro VI |
| Output [kW] max. | 105 | 120 |
| Transmission, type | 7G-Tronic PLUS transmission, 7-gear, automatic | 7G-Tronic PLUS transmission, 7-gear, automatic |
| Engine & output (Optional specification 1) | ||
| Engine | Mercedes-Benz OM 651 Euro VI | Mercedes-Benz OM 651 Euro VI |
| Output [kW] max. | 120 | 120 |
| Transmission, type | 7G-Tronic PLUS transmission, 7-gear, automatic | 7G-Tronic PLUS transmission, 7-gear, automatic |
| Engine & output (Optional specification 2) | ||
| Engine | - | - |
| Output [kW] max. | - | - |
| Transmission, type | - | - |
| Driving assistance systems | ||
| Adaptive Electronic Stability Programme (ADAPTIVE ESP®) | ✔ | ✔ |
| Anti-lock Braking System (ABS) | ✔ | ✔ |
| Acceleration Skid Control (ASR) | ✔ | ✔ |
| Hill start assist | ✔ | ✔ |
| HOLD function | ✔ | ✔ |
| Active Brake Assist | ✔ | ✔ |
| Active Proximity Control System DISTRONIC | ✔* | ✔* |
| Active Lane Assist | ✔* | - |
| Traffic Signal Assistant | ✔* | - |
| Blind Spot Assist with Rear Cross Traffic Alert | ✔* | - |
| Side Wind Assist | ✔ | ✔ |
| Highbeam Assistt | ✔* | - |
| Windscreen washing system: WET WIPER SYSTEM | ✔* | ✔ |
| Parking package with 360° camera | ✔* | - |
| Parking package with rear-view camera | ✔* | - |
| Weights | ||
| Tank, Diesel [l] | approx. 71 | approx. 71 |
| TTank, AdBlue [l] | approx. 22 | approx. 22 |
| Permissible total weight (standard) [kg] | 5.000 | 6.800 |
| Permissible axle loads - Front axle (standard) [kg] | 1.850 | 2.100 |
| Permissible axle loads - Rear axle (driving axle) [kg] | 3.500 | 4.800 |
*Optional Equipment
**Mobility 23 is not available with roof vent.
